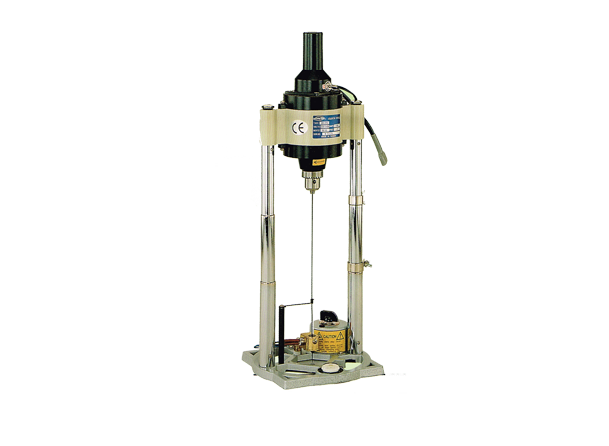

Cloth Marking Drill With Heater

SM-201L (Tapered Drill with machine: 1.6mm * 2 pcs 2.0 mm * 2 pcs)

Features：
(1)The same type of machine can drill the maximum thickness of the model

Power	120W * In ordering please specify Voltages
Drill Height	200MM(8")
Motor Speed	50Hz/60Hz , 2850/3450 RPM
Net weight	5.5 Kgs/set
Gross weight	27.6 Kgs /4 sets /CTN
Package	4 Sets / CTN:614552 cm

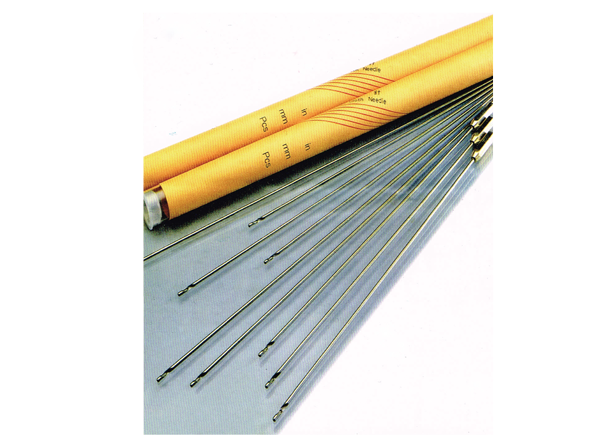

Drills (Optional)	Tapered Drill Needles: 1.0, 1.2, 1.6, 2.0, 2.5, 3.0, 4.0, 5.0 mm O.D. * 330 mm Length Hollow Drill Needles: 1.6, 2.0, 2.5, 3.0, 4.0, 5.0 O.D. * 330 mm Length

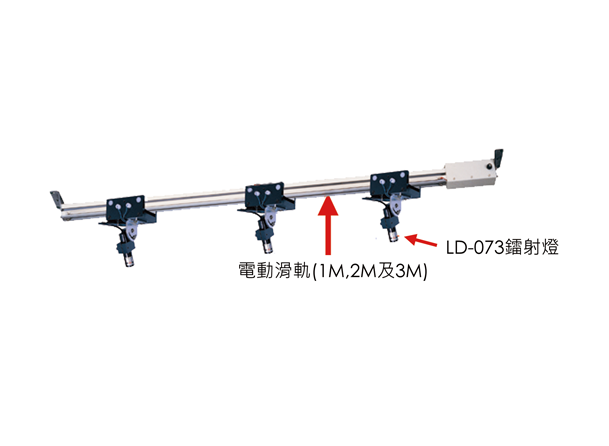

Holders are launched on the track and can be re-located according to usage, projector can be adjusted 360 degrees easily, track length can be customized.

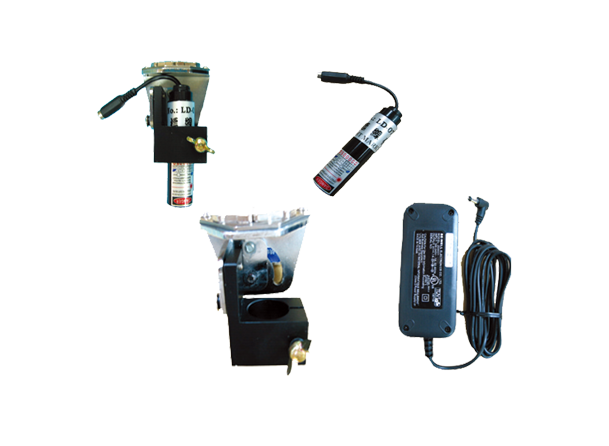

Laser Liner Marker With Magnetic Holder

LD-073 , LD-078 , LDX-701

Features：

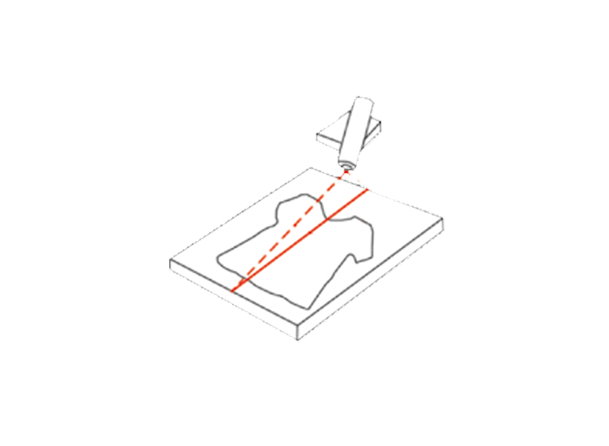

(1)Very useful while stacking cloth and cutting fabric, can easily help users get the precise work.
(2)Semiconductors are made in Japan and with very good qualities.
(3)Circuit protection devices can significantly extend product life.
(4)Projector can be adjusted 360 degrees easily.

Model	LD-073	LD-078	LDX-701

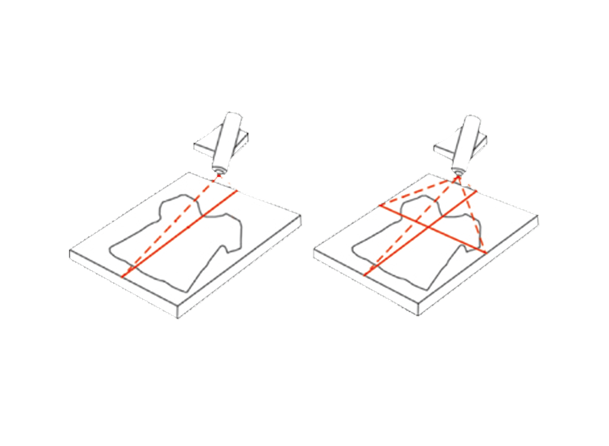

Pattern	Line	Line	Big Cross
Voltage	100-240V/5VDC * In ordering please specify Voltages	100-240V/5VDC * In ordering please specify Voltages	100-240V/5VDC * In ordering please specify Voltages
Visible Distance	3 M	5 M	2-5 M

Optional：Mini-Laser Line Marker( SLD-03、SLD-04、SLD-05), Green Light Laser Line Marker(LD-063G、LD-066G))
